Earl's releases large assortment of new products

07/16/2018

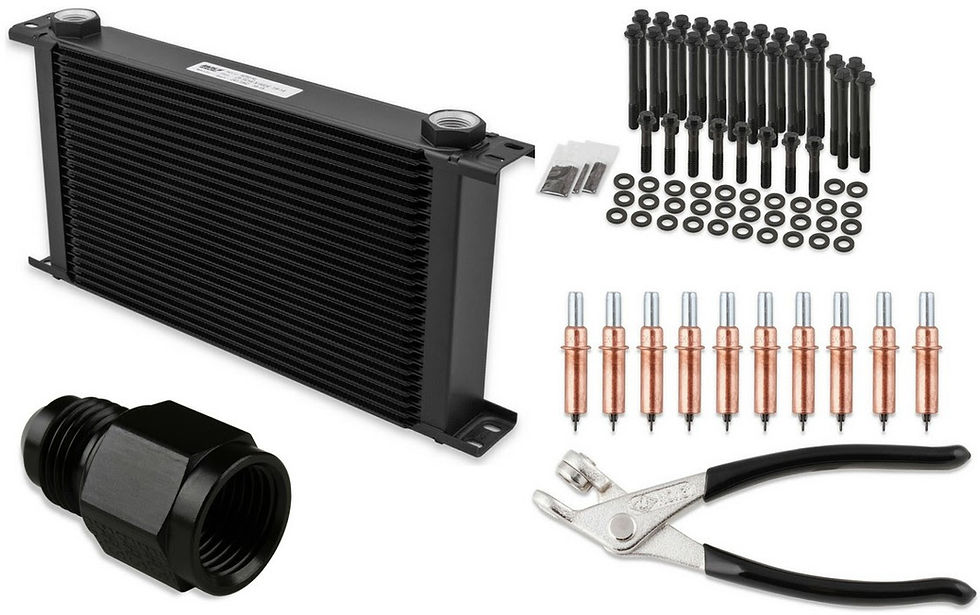

Holley/MSD is pleased to announce the release of a host of new products from Earl's, including oil coolers, cylinder head bolts, Cleco pliers and fasteners, and AN extenders. The oil coolers are available in 30 different configurations and are compatible with countless applications, and the head bolts come in both 2-point and hex-head versions. The Cleco pliers and fasteners are offered in both 1/8-inch and 3/16-inch sizes, and the AN adapters are the answer whenever a hose doesn't have quite enough slack.​

ULTRAPRO OIL COOLERS
Earl’s UltraPRO Oil Coolers are available in 30 different sizes and ideal for a huge array of applications – engine oil coolers, transmission coolers, power steering coolers, valve spring coolers, and differential/gearbox coolers. Manufactured using state-of-the-art brazing techniques, these durable, stacked-plate black aluminum coolers are highly efficient with minimal pressure drop. Three width options are available – Narrow (8.25-inch), Wide (12.99-inch), and Extra Wide (15.94-inch). Ten different height options are offered, from  2.09-inch to 18.31-inch, with offerings from 7 to 60 rows. Three fan-pack-style coolers are also available with a cooling fan and shroud. They feature -10 AN O-ring female ports and are engineered for use with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earl's now also stocks coolers with -16 AN male flares for jobs that require larger ports for additional flow. These new coolers replace the Temp-A-Cure Oil Coolers (except for curved coolers); old-style Temp-A-Cure Oil Coolers will remain available until the existing stock sells out.​

CYLINDER HEAD BOLTS
Earl’s Head Bolts are made from 170,000-PSI chromoly alloy steel and feature a reduced wrench size for extra socket clearance around the rocker arms when re-torqueing heads. About 15 percent stronger than Grade 8 bolts and developed specifically for big-block Chevys and small-block Fords, they're available in both 12-point and hex-head configurations. An extra-wide flange provides additional support for the included extra-thick chromoly washers. They're sold in complete sets, reusable, and come complete with anti-seize lubricant.

CLECO PLIERS & FASTENERS
Earl's Cleco Pliers and Fasteners are reusable temporary fasteners ideal for use with race cars, automotive restoration projects, and any kind of fabrication job. Compatible with sheet metal, fiberglass, Lexan, and many other materials, they work with either 1/8-inch or 3/16-inch rivets. The pliers are designed to install and remove the Clecos, which allow easy disassembly for refitting, trimming, and deburring. The fasteners are sold in packages of 10 and come with or without a set of pliers, and pliers are also available separately.

AN EXTENDERS
​Earl's AN Extenders are perfect when a hose doesn’t have quite enough slack and anywhere a little extra space is needed between two fittings. Available with a black-anodized finish in AN Sizes -6, -8, -10, and -12, they're similar to reducers and expanders, only with the same size on both ends – one male and one female.



For complete product details, click the following links:
